![All lanes : Anti-ENPP2 antibody [5H3] (ab77104) at 10 µg/mlLane 1 : Placenta (Human) Tissue Lysate - adult normal tissue (ab29745)Lane 2 : Ovary (Human) Tissue Lysate - adult normal tissue (ab30222)Lane 3 : Small Intestine (Human) Tissue Lysate - adult normal tissue (ab29276)Lysates/proteins at 20 µg per lane.SecondaryMouse IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilutiondeveloped using the ECL techniquePerformed under reducing conditions.](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_2/13845_ENPP2-Primary-antibodies-ab77104-16.jpg)
All lanes : Anti-ENPP2 antibody [5H3] (ab77104) at 10 µg/mlLane 1 : Placenta (Human) Tissue Lysate - adult normal tissue (ab29745)Lane 2 : Ovary (Human) Tissue Lysate - adult normal tissue (ab30222)Lane 3 : Small Intestine (Human) Tissue Lysate - adult normal tissue (ab29276)Lysates/proteins at 20 µg per lane.SecondaryMouse IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilutiondeveloped using the ECL techniquePerformed under reducing conditions.

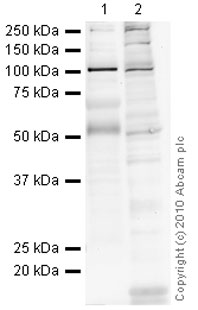

![All lanes : Anti-ENPP2 antibody [5H3] (ab77104) at 10 µg/mlLane 1 : Kidney (Human) Tissue Lysate - adult normal tissue (ab30203)Lane 2 : HEK293 (Human embryonic kidney cell line) Whole Cell Lysate Lysates/proteins at 20 µg per lane.SecondaryGoat polyclonal to Mouse IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilutiondeveloped using the ECL techniquePerformed under reducing conditions.](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_2/13846_ENPP2-Primary-antibodies-ab77104-15.jpg)
All lanes : Anti-ENPP2 antibody [5H3] (ab77104) at 10 µg/mlLane 1 : Kidney (Human) Tissue Lysate - adult normal tissue (ab30203)Lane 2 : HEK293 (Human embryonic kidney cell line) Whole Cell Lysate Lysates/proteins at 20 µg per lane.SecondaryGoat polyclonal to Mouse IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilutiondeveloped using the ECL techniquePerformed under reducing conditions.
IHC image of ENPP2 staining in Human Tonsil FFPE section, performed on a BondTM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab77104, 1µg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX
ICC/IF image of ab77104 stained HeLa cells. The cells were 100% methanol fixed (5 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab77104, 10µg/ml) overnight at +4°C. The secondary antibody (green) was Alexa Fluor® 488 goat anti-mouse IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.
