All lanes : Anti-Histone H2A (phospho S1) + Histone H4 (phospho S1) antibody (ab14723) at 1/1000 dilutionLane 1 : YDH8 cka 2-8 ts grown at 30 degrees CLane 2 : YDH8 cka 2-8 ts grown at 38 degrees CSecondaryHRP conjugated anti-Rabbit

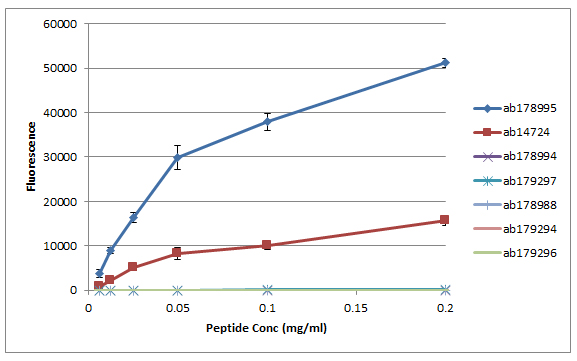

All batches of ab14723 are tested in Peptide Array against peptides to different Histone modifications. Six dilutions of each peptide are printed on to the Peptide Array in triplicate and results are averaged before being plotted on to a graph. Results show strong binding to Histone H2A S1p peptide (ab178995), indicating that this antibody specifically recognises the Histone H2A S1p modification. Partial binding is also observed to the Histone H4 S1p modification.ab178995 - Histone H2A S1pab14724 - Histone H4 S1pab178994 - Histone H2A unmodifiedab179297 - Histone H4 unmodifiedab178988 - Histone H1.4 S1pab179294 - Histone H3.3 S28pab179296 - Histone H3.3 S31p
IHC image of Histone H2A (phospho S1) + Histone H4 (phospho S1) staining in human breast carcinoma FFPE section, performed on a BondTM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab14723, 1µg/ml, for 8 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.
