Western blot analysis of extracts from MOLT-4 and NCCIT cells using Brd2 (D89B4) Rabbit mAb.

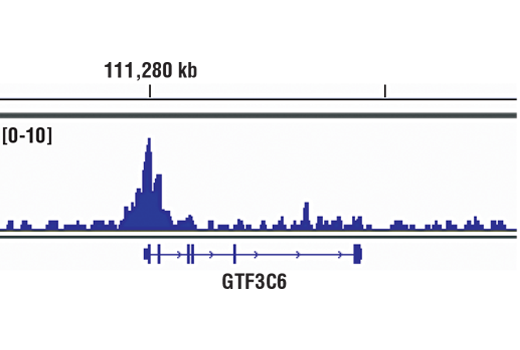

Chromatin immunoprecipitations were performed with cross-linked chromatin from 4 x 10 6 NCCIT cells and 10 μl of Brd2 (D89B4) Rabbit mAb, using SimpleChIP ® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared from 5 ng enriched ChIP DNA using NEBNext ® Ultra™ II DNA Library Prep Kit for Illumina ® , and sequenced on the Illumina NextSeq. The figure shows binding across GTF3C6, a known target gene of BRD2 (see additional figure containing ChIP-qPCR data). For additional ChIP-seq tracks, please download the product data sheet.

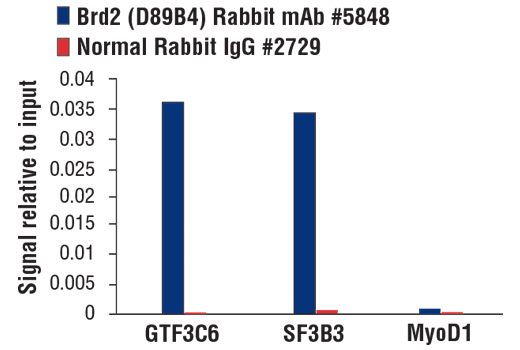

Chromatin immunoprecipitations were performed with cross-linked chromatin from 4 x 10 6 NCCIT cells and either 10 μl of Brd2 (D89B4) Rabbit mAb or 2 μl of Normal Rabbit IgG #2729 using SimpleChIP ® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. The enriched DNA was quantified by real-time PCR using human GTF3C6 exon 1 primers, SimpleChIP ® Human SF3B3 Exon 1 Primers #62858, and SimpleChIP ® Human MyoD1 Exon 1 Primers #4490. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
