Anti-Proteasome 20S LMP2 antibody [EPR13784]

• Supplier: Abcam
• Catalog: ab187645
• Prices: $384.00
• Sizes: 100 µl
• Host: Rabbit
• Clonality: Monoclonal
• Isotype: IgG
• Clone: EPR13784
• Applications: WB ICC/IF ICC/IF FC IP
• Species Reactivities: Human
• Antigen: Synthetic peptide (the amino acid sequence is considered to be commercially sensitive) within Human Proteasome 20S LMP2 aa 100-200
• Description: Rabbit Monoclonal
• Gene: PSMB9
• Conjugate: Unconjugated

Product images

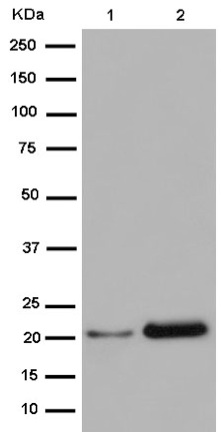

All lanes : Anti-Proteasome 20S LMP2 antibody [EPR13784] (ab187645) at 1/10000 dilutionLane 1 : Ramos cell lysateLane 2 : Raji cell lysateLysates/proteins at 20 µg per lane.SecondaryGoat Anti-Rabbit IgG, (H+L), Peroxidase conjugate at 1/1000 dilution

All lanes : Anti-Proteasome 20S LMP2 antibody [EPR13784] (ab187645) at 1/2000 dilutionLane 1 : HL60 cell lysateLane 2 : A431 cell lysateLysates/proteins at 20 µg per lane.SecondaryGoat Anti-Rabbit IgG, (H+L), Peroxidase conjugate at 1/1000 dilution

Western blot analysis of Proteasome 20S LMP2 in Raji cell lysate immunoprecipitated using ab187645 at 1/50 (Lane 1).  Lane 2: PBS instead of Raji lysate. Secondary antibody: Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1500 dilution.Based on the sequence analysis by BLAST, ab187645 recognizes two isoforms with the predicted MWs of 22kDa and 23kDa respectively.

Flow cytometric analysis of 2% paraformaldehyde-fixed Raji cells labeling Proteasome 20S LMP2 with ab187645 at 1/170 dilution compared to a Rabbit monoclonal IgG isotype control, followed by Goat anti rabbit IgG (FITC) secondary antibody at 1/150 dilution.

Immunofluorescent analysis of 4% paraformaldehyde-fixed A431 cells labeling Proteasome 20S LMP2 with ab187645 at 1/100 dilution. Counter stained with Dapi (blue).
