Overlay histogram showing HeLa cells stained with ab133534 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab133534, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor® 488 goat anti-rabbit IgG (H+L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (1μg/1x106 cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.
![All lanes : Anti-Rad51 antibody [EPR4030(3)] (ab133534) at 1/10000 dilutionLane 1 : C6 cell lysateLane 2 : 293T cell lysateLane 3 : Jurkat cell lysateLane 4 : HeLa cell lysateLane 5 : K562 cell lysateLysates/proteins at 10 µg per lane.SecondaryHRP labelled goat anti-rabbit at 1/2000 dilution](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_4/20077_Rad51-Primary-antibodies-ab133534-1.jpg)

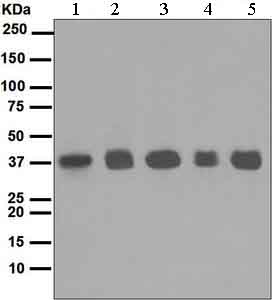

All lanes : Anti-Rad51 antibody [EPR4030(3)] (ab133534) at 1/10000 dilutionLane 1 : C6 cell lysateLane 2 : 293T cell lysateLane 3 : Jurkat cell lysateLane 4 : HeLa cell lysateLane 5 : K562 cell lysateLysates/proteins at 10 µg per lane.SecondaryHRP labelled goat anti-rabbit at 1/2000 dilution
Immunohistochemistry analysis of Paraffin Embedded Human testis tissue labelling Rad51 with ab133534 at 1/100.
Equilibrium disassociation constant (KD)Learn more about KD Click here to learn more about KD
