Anti-TGN46 antibody [2F7.1]
| Name | Anti-TGN46 antibody [2F7.1] |
|---|---|
| Supplier | Abcam |
| Catalog | ab2809 |
| Prices | $394.00 |
| Sizes | 100 µl |
| Host | Mouse |
| Clonality | Monoclonal |
| Isotype | IgG1 |
| Clone | 2F7.1 |
| Applications | IP B/N IHC-F ICC/IF WB FC |
| Species Reactivities | Rat, Rabbit, Hamster, Human, Primate, Monkey, Hamster |
| Antigen | Synthetic peptide corresponding to Rat TGN46 aa 1-17 |
| Description | Mouse Monoclonal |
| Gene | TGOLN2 |
| Conjugate | Unconjugated |
| Supplier Page | Shop |
Product images
NRK cells were stained with anti-TGN46 ab2809 (red) anti-beta-COP ab2899 (green) and DAPI.
Immunofluorescent analysis of Phalloidin (green) and TGN46(purple) in U2OS cells. Formalin fixed cells were permeabilized with 0.1% Triton X-100 in PBS for 10 minutes at room temperature and blocked with 2% BSA in PBS + 0.1% Triton X-100 for 30 minutes at room temperature. Cells were probed with a TGN46 monoclonal antibody (ab2809) at a dilution of 1:75 for at least 1 hour at room temperature and incubated with DyLight 680 goat anti-mouse IgG secondary antibody at a dilution of 1:250 for 30 minutes at room temperature. Actin was stained with DyLight 488 Phalloidin at a dilution of 1:300 (1 unit/ml final concentration) for 30 minutes. Images were taken at 20X magnification.
Immunofluorescent analysis of TGN46 using anti-TGN46 monoclonal antibody (ab2809) shows staining in NS-1 Cells.
HeLa and COS7 cells were rinsed with PBS and fixed with -20�C methanol for 5 minutes. Cells were incubated with anti-TGN46 antibody (ab2809) diluted 1:100 in PBS containing 0.2% BSA for 1 hour. The cells were then rinsed in PBS and incubated with goat anti-mouse IgG conjugated to rhodamine for 30 minutes in PBS containing 0.2% BSA.
ICC/IF image of ab2809 stained rat PC12 cells. The cells were 4% PFA and 100% Methanol fixed (10 min) and then incubated in 1% BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab2809, 5 µg/ml) overnight at +4°C. The secondary antibody (green) was Alexa Fluor® 488 goat anti-mouse IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue).
ab2809 staining Chinese Hamster Ovary cell by Immunocytochemistry/Immunofluorescence. The cells were paraformaldehyde fixed and permeabilized in 0.5% Triton prior to blocking with 10% FCS for 30 minutes at room temperature. The primary antibody was diluted 1/1000 and incubated with the sample for 2 hours. The secondary antibody was an Alexa Fluor® 488-conjugated Goat antibody, diluted 1/1000.See Abreview
![Overlay histogram showing CHO cells stained with ab2809 (red line). The cells were fixed with 100% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab2809, 1/50 dilution) for 30 min at 22°C. The secondary antibody used was goat anti-mouse DyLight® 488 (IgG H+L) (ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (ab91353, 2µg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in CHO cells fixed with 4% paraformaldehyde (10 min)/permeabilized in 0.1% PBS-Tween used under the same conditions.](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_5/10412_TGN46-Primary-antibodies-ab2809-6.jpg)

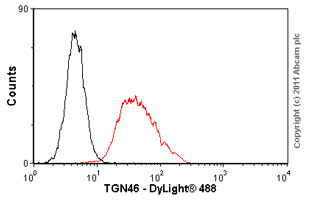

Overlay histogram showing CHO cells stained with ab2809 (red line). The cells were fixed with 100% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab2809, 1/50 dilution) for 30 min at 22°C. The secondary antibody used was goat anti-mouse DyLight® 488 (IgG H+L) (ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (ab91353, 2µg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in CHO cells fixed with 4% paraformaldehyde (10 min)/permeabilized in 0.1% PBS-Tween used under the same conditions.
Product References
Protein kinase C delta regulates the release of collagen type I from vascular - Protein kinase C delta regulates the release of collagen type I from vascular
Lengfeld J, Wang Q, Zohlman A, Salvarezza S, Morgan S, Ren J, Kato K, Rodriguez-Boulan E, Liu B. Mol Biol Cell. 2012 May;23(10):1955-63.
Regulation of insulin-stimulated glucose uptake in rat white adipose tissue upon - Regulation of insulin-stimulated glucose uptake in rat white adipose tissue upon
Bonzon-Kulichenko E, Fernandez-Agullo T, Molto E, Serrano R, Fernandez A, Ros M, Carrascosa JM, Arribas C, Martinez C, Andres A, Gallardo N. Endocrinology. 2011 Apr;152(4):1366-77.
The clavesin family, neuron-specific lipid- and clathrin-binding Sec14 proteins - The clavesin family, neuron-specific lipid- and clathrin-binding Sec14 proteins
Katoh Y, Ritter B, Gaffry T, Blondeau F, Honing S, McPherson PS. J Biol Chem. 2009 Oct 2;284(40):27646-54.
Dynein dysfunction induces endocytic pathology accompanied by an increase in Rab - Dynein dysfunction induces endocytic pathology accompanied by an increase in Rab
Kimura N, Inoue M, Okabayashi S, Ono F, Negishi T. J Biol Chem. 2009 Nov 6;284(45):31291-302.
Mitochondrial m-calpain plays a role in the release of truncated - Mitochondrial m-calpain plays a role in the release of truncated
Ozaki T, Yamashita T, Ishiguro S. Biochim Biophys Acta. 2009 Dec;1793(12):1848-59. doi:
Backpropagating action potentials trigger dendritic release of BDNF during - Backpropagating action potentials trigger dendritic release of BDNF during
Kuczewski N, Porcher C, Ferrand N, Fiorentino H, Pellegrino C, Kolarow R, Lessmann V, Medina I, Gaiarsa JL. J Neurosci. 2008 Jul 2;28(27):7013-23.
Central leptin regulates total ceramide content and sterol regulatory element - Central leptin regulates total ceramide content and sterol regulatory element
Bonzon-Kulichenko E, Schwudke D, Gallardo N, Molto E, Fernandez-Agullo T, Shevchenko A, Andres A. Endocrinology. 2009 Jan;150(1):169-78.
Programmed death-1 concentration at the immunological synapse is determined by - Programmed death-1 concentration at the immunological synapse is determined by
Pentcheva-Hoang T, Chen L, Pardoll DM, Allison JP. Proc Natl Acad Sci U S A. 2007 Nov 6;104(45):17765-70. Epub 2007 Oct 29.
Expression of G protein-coupled receptor-30, a G protein-coupled membrane - Expression of G protein-coupled receptor-30, a G protein-coupled membrane
Sakamoto H, Matsuda K, Hosokawa K, Nishi M, Morris JF, Prossnitz ER, Kawata M. Endocrinology. 2007 Dec;148(12):5842-50. Epub 2007 Sep 13.
Cytoplasmic tails of SialT2 and GalNAcT impose their respective proximal and - Cytoplasmic tails of SialT2 and GalNAcT impose their respective proximal and
Uliana AS, Giraudo CG, Maccioni HJ. Traffic. 2006 May;7(5):604-12.
