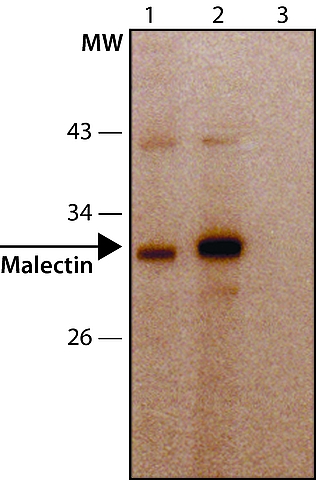

ImmunoblottingWhole extract of HEK-293T cells overexpressing human Malectin was separated on SDS-PAGE and probed with Rabbit Anti-Malectin (
Cat. No. SAB4200244). The antibody was developed using Goat Anti-Rabbit IgG-Peroxidase (
Cat. No. A0545) and a chemiluminescent substrate.
Lanes1. 1 μg/mL antibody
2. 2 μg/mL antibody
3. 2 μg/mL antibody + Malectin immunizing peptide
4. Negative control: without antibody

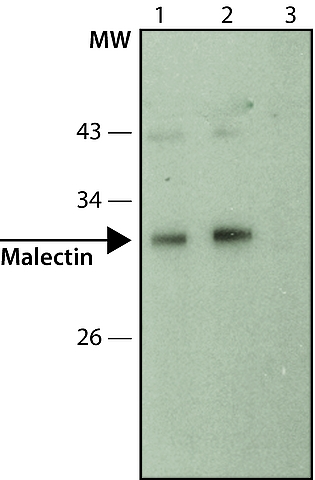

ImmunoblottingWhole extract of Rat Liver was separated on SDS-PAGE and probed with Rabbit Anti-Malectin (
Cat. No. SAB4200244). The antibody was developed using Goat Anti-Rabbit IgG-Peroxidase (
Cat. No. A0545) and a chemiluminescent substrate.
Lanes1. 2 μg/mL antibody
2. 5 μg/mL antibody
3. 5 μg/mL antibody + Malectin immunizing peptide
ImmunoblottingWhole extract of Mouse Liver was separated on SDS-PAGE and probed with Rabbit Anti-Malectin (
Cat. No. SAB4200244). The antibody was developed using Goat Anti-Rabbit IgG-Peroxidase (
Cat. No. A0545) and a chemiluminescent substrate.
Lanes1. 2 μg/mL antibody
2. 5 μg/mL antibody
3. 5 μg/mL antibody + Malectin immunizing peptide
