![Anti-Amphiphysin antibody [EP2060Y] (ab52646) at 1/100000 dilution + Human brain lysate at 10 µgSecondaryGoat anti-Rabbit HRP labeled at 1/2000 dilution](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_1/6557_ab52646_1.bmp)

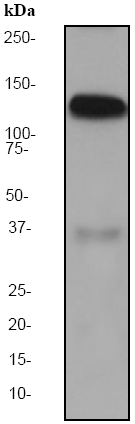

Anti-Amphiphysin antibody [EP2060Y] (ab52646) at 1/100000 dilution + Human brain lysate at 10 µgSecondaryGoat anti-Rabbit HRP labeled at 1/2000 dilution
Ab52646 (1/100) staining human Amphiphysin in human brain tissue by immunohistochemistry using paraffin embedded tissue.
Immunofluorescent staining of SH-SYS5 cells using ab52646 (1/100).
Overlay histogram showing SH-SY5Y cells stained with ab52646 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab52646, 1/100) for 30 min at 22ºC. The secondary antibody used was DyLight® 488 goat anti-rabbit IgG (H+L) (ab96899) at 1/500 dilution for 30 min at 22ºC. Isotype control antibody (black line) was rabbit IgG (monoclonal) (1µg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed.
