Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human bronchial epithelial tissue labelling C14orf166 with ab49342 at 1/100. A Cy3-conjugated donkey anti-rabbit IgG (1/200) was used as the secondary antibody. Positive staining shown as cytoplasmic. Magnification: 20X. Exposure time: 0.5 - 2.0 seconds. Left - DAPI. Middle - C14orf166. Right - Merge.
ICC/IF image of ab49342 stained HeLa cells. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab49342, 1µg/ml) overnight at +4°C. The secondary antibody (green) was ab96899, DyLight® 488 goat anti-rabbit IgX (H+L) used at a 1/250 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM

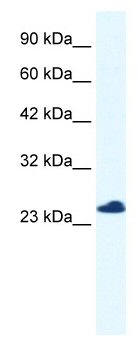

Anti-C14orf166 antibody (ab49342) at 0.125 µg/ml + Jurkat cell lysate at 10 µgSecondaryHRP conjugated anti-Rabbit IgG at 1/50000 dilution
