Anti-CXCR4 antibody [UMB2]

• Supplier: Abcam
• Catalog: ab124824
• Prices: $400.00
• Sizes: 100 µl
• Host: Rabbit
• Clonality: Monoclonal
• Isotype: IgG
• Clone: UMB2
• Applications: WB IHC-P ICC/IF ICC/IF
• Species Reactivities: Mouse, Human, Rat
• Antigen: Synthetic peptide (the amino acid sequence is considered to be commercially sensitive) corresponding to Human CXCR4 aa 300 to the C-terminus (C terminal)
• Blocking Peptide: CXCR4 peptide
• Description: Rabbit Monoclonal
• Gene: CXCR4
• Conjugate: Unconjugated

Product images

Immunohistochemical staining of paraffin embedded human cervical carcinoma with purified ab124824 at a working dilution of 1/500. The secondary antibody used is ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L), at a dilution of 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

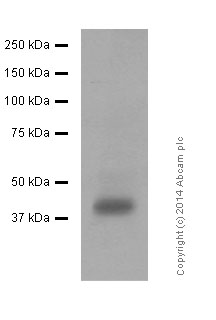

Anti-CXCR4 antibody [UMB2] (ab124824) at 1/100 dilution (purified) + Rat muscle tissue lysate at 20 µgSecondaryHRP goat anti-rabbit (H+L) at 1/1000 dilution

Anti-CXCR4 antibody [UMB2] (ab124824) at 1/100 dilution (purified) + NIH/3T3 cell lysate at 20 µgSecondaryHRP goat anti-rabbit (H+L) at 1/1000 dilution

Anti-CXCR4 antibody [UMB2] (ab124824) at 1/100 dilution (purified) + WI-38 cell lysate at 10 µgSecondaryHRP goat anti-rabbit (H+L) at 1/1000 dilution

Immunofluorescence staining of Jurkat cells with purified ab124824 at a working dilution of 1 in 250, counter-stained with DAPI. Tubulin was stained with mouse anti-tubulin at a dilution of 1/1000 (ab7291) and Alexa Fluor® 594 goat anti-mouse at a dilution of 1/500 (ab150120) . The secondary antibody was ab150077 Alexa Fluor® 488 goat anti rabbit, used at a dilution of 1 in 500. The cells were fixed in 4% PFA and permeabilized using 0.1% Triton X 100. The negative controls are shown in the bottom middle and right hand panels - for the first negative control, purified ab124824 was used at a dilution of 1/200 followed by an Alexa Fluor® 555 goat anti-mouse antibody at a dilution of 1/500 and for the second negative control mouse primary antibody (ab7291) and anti-rabbit secondary antibody (ab15007) were used.

Unpurified ab124824, at 1/50 dilution, staining CXCR4 in paraffin-embedded Human cervical carcinoma tissue by immunohistochemistry.

Unpurified ab124824, at 1/50 dilution, staining CXCR4 in paraffin-embedded Human ovarian adenocarcinoma tissue by immunohistochemistry.

Unpurified ab124824, at 1/50 dilution, staining CXCR4 in paraffin-embedded Human tonsil tissue by immunohistochemistry.

Lane 1 : Anti-CXCR4 antibody [UMB2] (ab124824) at 1/500 dilution (unpurified)Lane 2 : Anti-CXCR4 antibody [UMB2] (ab124824) at 1/500 dilutionLane 1 : HEK239 tansfected with a CXCR4 (mouse) expression vector cell lysateLane 2 : HEK239 tansfected with an empty expression vector cell lysateLysates/proteins at 100000 cells per lane.SecondaryHRP-conjugated Goat anti-rabbit IgG polyclonal at 1/50000 dilutiondeveloped using the ECL techniquePerformed under reducing conditions.

Product References

CXCR7 prevents excessive CXCL12-mediated downregulation of CXCR4 in migrating - CXCR7 prevents excessive CXCL12-mediated downregulation of CXCR4 in migrating

Abe P, Mueller W, Schutz D, MacKay F, Thelen M, Zhang P, Stumm R. Development. 2014 May;141(9):1857-63.

Circulating hematopoietic stem and progenitor cells are myeloid-biased in cancer - Circulating hematopoietic stem and progenitor cells are myeloid-biased in cancer

Wu WC, Sun HW, Chen HT, Liang J, Yu XJ, Wu C, Wang Z, Zheng L. Proc Natl Acad Sci U S A. 2014 Mar 18;111(11):4221-6. doi:

Gene expression in human ovarian tissue after xenografting. - Gene expression in human ovarian tissue after xenografting.

Van Langendonckt A, Romeu L, Ambroise J, Amorim C, Bearzatto B, Gala JL, Donnez J, Dolmans MM. Mol Hum Reprod. 2014 Jun;20(6):514-25.

Inflammatory cell distribution in primary merkel cell carcinoma. - Inflammatory cell distribution in primary merkel cell carcinoma.

Wheat R, Roberts C, Waterboer T, Steele J, Marsden J, Steven NM, Blackbourn DJ. Cancers (Basel). 2014 May 6;6(2):1047-64.

Can expression of CXCL12 and CXCR4 be used to predict survival of gastric cancer - Can expression of CXCL12 and CXCR4 be used to predict survival of gastric cancer

Satomura H, Sasaki K, Nakajima M, Yamaguchi S, Onodera S, Otsuka K, Takahashi M, Muroi H, Shida Y, Ogata H, Okamoto K, Kato H. Anticancer Res. 2014 Aug;34(8):4051-7.

CXCR4 prevents dispersion of granule neuron precursors in the adult dentate - CXCR4 prevents dispersion of granule neuron precursors in the adult dentate

Schultheiss C, Abe P, Hoffmann F, Mueller W, Kreuder AE, Schutz D, Haege S, Redecker C, Keiner S, Kannan S, Claasen JH, Pfrieger FW, Stumm R. Hippocampus. 2013 Dec;23(12):1345-58.

Fibrocytes are associated with the fibrosis of coronary heart disease. - Fibrocytes are associated with the fibrosis of coronary heart disease.

Lei PP, Qu YQ, Shuai Q, Tao SM, Bao YX, Wang Y, Wang SW, Wang DH. Pathol Res Pract. 2013 Jan 15;209(1):36-43.

Cxcl12/Cxcr4 signaling controls the migration and process orientation of A9-A10 - Cxcl12/Cxcr4 signaling controls the migration and process orientation of A9-A10

Yang S, Edman LC, Sanchez-Alcaniz JA, Fritz N, Bonilla S, Hecht J, Uhlen P, Pleasure SJ, Villaescusa JC, Marin O, Arenas E. Development. 2013 Nov;140(22):4554-64.

Hierarchical organization of multi-site phosphorylation at the CXCR4 C terminus. - Hierarchical organization of multi-site phosphorylation at the CXCR4 C terminus.

Mueller W, Schutz D, Nagel F, Schulz S, Stumm R. PLoS One. 2013 May 29;8(5):e64975.

Tumor Microenvironment Varies under Different TCM ZHENG Models and Correlates - Tumor Microenvironment Varies under Different TCM ZHENG Models and Correlates

Chen Z, Chen LY, Wang P, Dai HY, Gao S, Wang K. Evid Based Complement Alternat Med. 2012;2012:635702.
