Example of a typical SMAD3 (pS423/S425) cell lysate dilution series. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

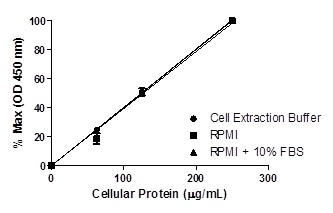

Linearity of dilution in representative sample matrices. Cellular lysates were prepared at 3 concentrations in common media containing 1X Cell Extraction Buffer PTR. Data from duplicate measurements of SMAD3 (pS423/S425) are normalized and plotted.
Induction of SMAD3 (pS423/S425) phosphorylation in HeLa cells in response to TGF-β treatment. HeLa cells were cultured in 96-well tissue culture plates, serum-starved and treated (60 min) with a dose-range of TGF-β before cell lysis. Data from quadruplicate measurements of SMAD3 (pS423/S425) are plotted.
Inhibition of SMAD3 (pS423/S425) phosphorylation in HeLa cells in response to SB431542 treatment. HeLa cells were cultured in 96-well tissue culture plates and treated with a dose-range of SB431542 (60 min). Cells were then stimulated with TGF-β (60 min) and lysed. Data from quadruplicate measurements of SMAD3 (pS423/S425) are plotted.
