Anti-IRF5 antibody [EPR17067]

• Supplier: Abcam
• Catalog: ab181553
• Prices: $347.00
• Sizes: 100 µl
• Host: Rabbit
• Clonality: Monoclonal
• Isotype: IgG
• Clone: EPR17067
• Applications: WB IHC-P ICC/IF ICC/IF FC IP
• Species Reactivities: Mouse, Rat, Human
• Antigen: Recombinant fragment within Human IRF5 aa 1-200
• Description: Rabbit Monoclonal
• Gene: IRF5
• Conjugate: Unconjugated

Product images

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized RAW 264.7 (Mouse macrophage cells transformed with Abelson murine leukemia virus) cells labeling IRF5 with ab181553 at 1/1000 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/500 dilution (green). Confocal image showing cytoplasmic and weakly nuclear staining on RAW 264.7 cells. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).The negative controls are as follows:-ve control 1: ab181553 at 1/1000 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.-ve control 2: ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/500 dilution.

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized THP-1 (Human monocytic leukemia cells) cells labeling IRF5 with ab181553 at 1/1000 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/500 dilution (green). Confocal image showing cytoplasmic and weakly nuclear staining on THP-1 cells. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).The negative controls are as follows:-ve control 1: ab181553 at 1/1000 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.-ve control 2: ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/500 dilution.

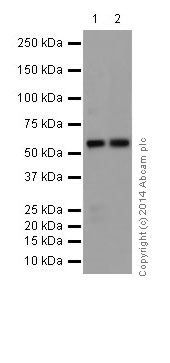

All lanes : Anti-IRF5 antibody [EPR17067] (ab181553) at 1/5000 dilutionLane 1 : Non-transfected HEK293T (Human epithelial cells from embryonic kidney) whole cell lysateLane 2 : IRF5 transfected HEK293T (Human epithelial cells from embryonic kidney) whole cell lysateLysates/proteins at 10 µg per lane.SecondaryGoat Anti-Rabbit IgG, (H+L),Peroxidase conjugated at 1/1000 dilution

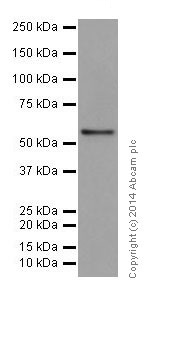

Anti-IRF5 antibody [EPR17067] (ab181553) at 1/2000 dilution + Ramos (Human Burkitt's lymphoma cell line) whole cell lysate at 10 µgSecondaryGoat Anti-Rabbit IgG, (H+L),Peroxidase conjugated at 1/1000 dilution

All lanes : Anti-IRF5 antibody [EPR17067] (ab181553) at 1/50000 dilutionLane 1 : THP-1 (Human monocytic leukemia cells) whole cell lysateLane 2 : A20 (Mouse reticulum cell sarcoma cell line) whole cell lysateLysates/proteins at 10 µg per lane.SecondaryGoat Anti-Rabbit IgG, (H+L),Peroxidase conjugated at 1/1000 dilution

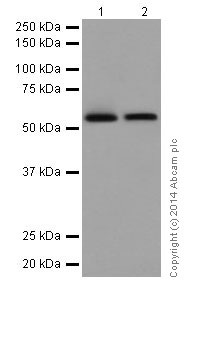

All lanes : Anti-IRF5 antibody [EPR17067] (ab181553) at 1/2000 dilutionLane 1 : Mouse thymus lysateLane 2 : Rat thymus lysateLysates/proteins at 10 µg per lane.SecondaryGoat Anti-Rabbit IgG, (H+L),Peroxidase conjugated at 1/1000 dilution

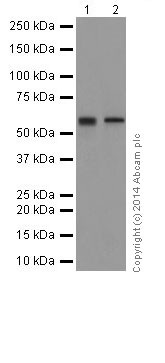

All lanes : Anti-IRF5 antibody [EPR17067] (ab181553) at 1/2000 dilutionLane 1 : Mouse spleen lysateLane 2 : Rat spleen lysateLysates/proteins at 10 µg per lane.SecondaryGoat Anti-Rabbit IgG, (H+L),Peroxidase conjugated at 1/1000 dilution

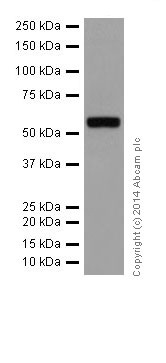

Anti-IRF5 antibody [EPR17067] (ab181553) at 1/5000 dilution + RAW 264.7(Mouse macrophage cells transformed with Abelson murine leukemia virus ) whole cell lysate at 10 µgSecondaryGoat Anti-Rabbit IgG, (H+L),Peroxidase conjugated at 1/1000 dilution

Flow cytometric analysis of 2% paraformaldehyde-fixed THP-1 (Human monocytic leukemia cells) cells labeling IRF5 with ab181553 at 1/50 dilution (red) compared with a rabbit monoclonal IgG isotype control (ab172730; black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (FITC) at 1/150 dilution was used as the secondary antibody.

Immunohistochemical analysis of paraffin-embedded Human spleen tissue labeling IRF5 with ab181553 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution. Nuclear and cytoplasmic staining on leukocytes of Human spleen is observed. Counter stained with Hematoxylin.Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Immunohistochemical analysis of paraffin-embedded Human breast cancer tissue labeling IRF5 with ab181553 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution. Nuclear and cytoplasmic staining on leukocyte of Human breast cancer stroma is observed. Counter stained with Hematoxylin.Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Immunohistochemical analysis of paraffin-embedded Human lung cancer tissue labeling IRF5 with ab181553 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution. Nucleus staining on cancer cells of Human lung cancer is observed. Counter stained with Hematoxylin.Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Immunohistochemical analysis of paraffin-embedded Mouse liver tissue labeling IRF5 with ab181553 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution. Nuclear staining on kupffer cells of mouse liver is observed. Counter stained with Hematoxylin.Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Immunohistochemical analysis of paraffin-embedded Rat spleen tissue labeling IRF5 with ab181553 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution. Nuclear and cytoplasmic staining on lymphocytes of rat spleen is observed. Counter stained with Hematoxylin.Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

IRF5 was immunoprecipitated from 1mg of RAW 264.7 (Mouse macrophage cells transformed with Abelson murine leukemia virus) whole cell lysate with ab181553 at 1/150 dilution. Western blot was performed from the immunoprecipitate using ab181553 at 1/1000 dilution. Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG, was used as secondary antibody at 1/1500 dilution.Lane 1: RAW 264.7 whole cell lysate 10 µg (Input).Lane 2: ab181553 IP in RAW 264.7 whole cell lysate.Lane 3: Rabbit monoclonal IgG (ab172730) instead of ab181553 in RAW 264.7 whole cell lysate.Blocking and dilution buffer and concentration: 5% NFDM/TBST.
