Anti-Neuropilin 1 antibody [EPR3113]

• Supplier: Abcam
• Catalog: ab81321
• Prices: $403.00
• Sizes: 100 µl
• Host: Rabbit
• Clonality: Monoclonal
• Isotype: IgG
• Clone: EPR3113
• Applications: WB IHC-P IP FC IHC-F ICC/IF ICC/IF
• Species Reactivities: Mouse, Rat, Human, Monkey, Marmoset
• Antigen: Synthetic peptide (Human) from the cytoplasmic region
• Description: Rabbit Monoclonal
• Gene: NRP1
• Conjugate: Unconjugated

Product images

All lanes : Anti-Neuropilin 1 antibody [EPR3113] (ab81321) at 1/1000 dilutionLane 1 : Human placenta lysateLane 2 : HUVEC cell lysateLane 3 : HepG2 cell lysateLane 4 : mouse heart tissue lysateLane 5 : mouse kidney tissue lysateLane 6 : rat heart tissue lysateLane 7 : rat kidney tissue lysateLysates/proteins at 10 µg per lane.SecondaryHRP goat anti rabbit at 1/2000 dilution

Immunohistochemical analysis of paraffin-embedded human kidney tissue using ab81321 at 1/100 dilution.

ab81321 staining Neuropilin 1 in Mouse brain tissue sections by Immunohistochemistry (IHC-P - formaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with formaldehyde and blocked with 10% serum for 1 hour at room temperature; antigen retrieval was by heat mediation in citrate buffer (pH 6). Samples were incubated with primary antibody (1/100 in PBS + 2% blocking serum) for 16 hours at 4°C. A biotin-conjugated Goat anti-rabbit IgG polyclonal (1/250) was used as the secondary antibody.See Abreview

ab81321 staining Neuropilin 1 in rat brain tissue sections by Immunohistochemistry (frozen sections). Tissue was fixed with paraformaldehyde and then blocked with 10% serum for 1 hour at 27°C followed by incubation with the primary antibody, undiluted, for 14 hours at 4°C. An undiluted Cy3®conjugated donkey anti-rabbit was used as the secondary antibody.See Abreview

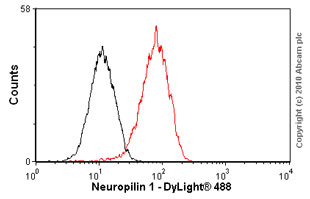

Overlay histogram showing HepG2 cells stained with ab81321 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab81321, 1/50 dilution) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-rabbit IgG (H+L) (ab96899) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit monoclonal IgG (0.5µg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a significantly decreased signal in HepG2 cells fixed with methanol (5 min)/permeabilized in 0.1% PBS-Tween used under the same conditions.

ICC/IF image of ab81321 stained MCF7 cells. The cells were 4% PFA fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab81321, 5µg/ml) overnight at +4°C. The secondary antibody (green) was DyLight® 488 goat anti-rabbit IgG - H&L, pre-adsorbed (ab96899) used at a 1/250 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.

ab81321 staining Neuropilin 1 in the COS1 fibroblast-like cell line derived from monkey kidney tissue by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with paraformaldehyde, permeabilized with Triton X-100 0.1% and blocked with 10% serum for 60 minutes at 24°C. Samples were incubated with primary antibody (1/200) for 16 hours at 4°C. An Alexa Fluor®488-conjugated Goat anti-rabbit monoclonal(1/500) was used as the secondary antibody.See Abreview

Product References

The periductal channels of the endolymphatic duct, hydrodynamic implications. - The periductal channels of the endolymphatic duct, hydrodynamic implications.

Linthicum FH Jr, Doherty J, Webster P, Makarem A. Otolaryngol Head Neck Surg. 2014 Mar;150(3):441-7.

Neuropilin 1 expression in human aortas, coronaries and the main bypass grafts. - Neuropilin 1 expression in human aortas, coronaries and the main bypass grafts.

Alattar M, Jiang C, Luan Z, Pan T, Liu L, Li J. Eur J Cardiothorac Surg. 2014 Dec;46(6):967-73.

Neuropilin 1 expression correlates with differentiation status of epidermal cells - Neuropilin 1 expression correlates with differentiation status of epidermal cells

Shahrabi-Farahani S, Wang L, Zwaans BM, Santana JM, Shimizu A, Takashima S, Kreuter M, Coultas L, D'Amore PA, Arbeit JM, Akslen LA, Bielenberg DR. Lab Invest. 2014 Jul;94(7):752-65.

Functional relevance of the switch of VEGF receptors/co-receptors during - Functional relevance of the switch of VEGF receptors/co-receptors during

Perez-Lozano ML, Sandoval P, Rynne-Vidal A, Aguilera A, Jimenez-Heffernan JA, Albar-Vizcaino P, Majano PL, Sanchez-Tomero JA, Selgas R, Lopez-Cabrera M. PLoS One. 2013 Apr 9;8(4):e60776.

Semaphorin 3d signaling defects are associated with anomalous pulmonary venous - Semaphorin 3d signaling defects are associated with anomalous pulmonary venous

Degenhardt K, Singh MK, Aghajanian H, Massera D, Wang Q, Li J, Li L, Choi C, Yzaguirre AD, Francey LJ, Gallant E, Krantz ID, Gruber PJ, Epstein JA. Nat Med. 2013 Jun;19(6):760-5.

Neuropilin-1 expression in squamous cell carcinoma of the oesophagus. - Neuropilin-1 expression in squamous cell carcinoma of the oesophagus.

Alattar M, Omo A, Elsharawy M, Li J. Eur J Cardiothorac Surg. 2014 Mar;45(3):514-20.

Neuropilin-1 modulates vascular endothelial growth factor-induced - Neuropilin-1 modulates vascular endothelial growth factor-induced

Mey L, Hormann M, Schleicher N, Reuter P, Donges S, Kinscherf R, Gassmann M, Gerriets T, Al-Fakhri N. Neurobiol Dis. 2013 Nov;59:111-25.

Gold nanoparticles functionalized with therapeutic and targeted peptides for - Gold nanoparticles functionalized with therapeutic and targeted peptides for

Kumar A, Ma H, Zhang X, Huang K, Jin S, Liu J, Wei T, Cao W, Zou G, Liang XJ. Biomaterials. 2012 Feb;33(4):1180-9.

Autocrine VEGF-VEGFR2-Neuropilin-1 signaling promotes glioma stem-like cell - Autocrine VEGF-VEGFR2-Neuropilin-1 signaling promotes glioma stem-like cell

Hamerlik P, Lathia JD, Rasmussen R, Wu Q, Bartkova J, Lee M, Moudry P, Bartek J Jr, Fischer W, Lukas J, Rich JN, Bartek J. J Exp Med. 2012 Mar 12;209(3):507-20.

NRP1 and NRP2 cooperate to regulate gangliogenesis, axon guidance and target - NRP1 and NRP2 cooperate to regulate gangliogenesis, axon guidance and target

Maden CH, Gomes J, Schwarz Q, Davidson K, Tinker A, Ruhrberg C. Dev Biol. 2012 Sep 15;369(2):277-85.
