Anti-PI 3 Kinase p85 beta antibody [EPR18416]

• Supplier: Abcam
• Catalog: ab180967
• Prices: $99.00, $347.00
• Sizes: 10 µl, 100 µl
• Host: Rabbit
• Clonality: Monoclonal
• Isotype: IgG
• Clone: EPR18416
• Applications: FC IHC-P WB ICC/IF ICC/IF IP
• Species Reactivities: Rat, Human
• Antigen: Synthetic peptide (the amino acid sequence is considered to be commercially sensitive) within Human PI 3 Kinase p85 beta aa 100-200
• Description: Rabbit Monoclonal
• Gene: PIK3R2
• Conjugate: Unconjugated

Product images

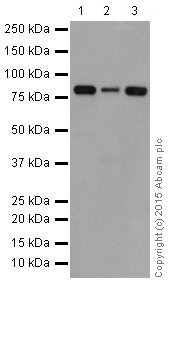

All lanes : Anti-PI 3 Kinase p85 beta antibody [EPR18416] (ab180967) at 1/2000 dilutionLane 1 : HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysateLane 2 : Jurkat (Human T cell leukemia cells from peripheral blood) whole cell lysateLane 3 : HEK293 (Human epithelial cells from embryonic kidney) whole cell lysateLysates/proteins at 20 µg per lane.SecondaryGoat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/1000 dilution

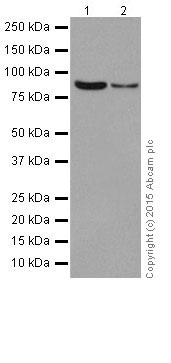

All lanes : Anti-PI 3 Kinase p85 beta antibody [EPR18416] (ab180967) at 1/2000 dilutionLane 1 : Human fetal brain lysateLane 2 : Human fetal kidney lysateLysates/proteins at 10 µg per lane.SecondaryAnti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1000 dilution

All lanes : Anti-PI 3 Kinase p85 beta antibody [EPR18416] (ab180967) at 1/2000 dilutionLane 1 : Rat brain lysateLane 2 : Rat spleen lysateLane 3 : PC-12 (Rat adrenal gland pheochromocytoma) whole cell lysateLysates/proteins at 10 µg per lane.SecondaryGoat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/1000 dilution

Immunohistochemical analysis of paraffin-embedded Human colon tissue labeling PI 3 Kinase p85 beta using ab180967 at 1/100 dilution. A Goat Anti-Rabbit IgG H&L (HRP) (ab97051) was used as secondary at 1/500 dilution. Cytoplasm staining on epithelial cells of Human colon was observed. Counter stained with Hematoxylin.Negative control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Immunohistochemical analysis of paraffin-embedded Human colonic adenocarcinoma tissue labeling PI 3 Kinase p85 beta using ab180967 at 1/100 dilution. A Goat Anti-Rabbit IgG H&L (HRP) (ab97051) was used as secondary at 1/500 dilution. Nucleus and cytoplasm staining on tumor cells of colonic adenocarcinoma was observed. Counter stained with Hematoxylin.Negative control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Immunohistochemical analysis of paraffin-embedded Rat testis tissue labeling PI 3 Kinase p85 beta using ab180967 at 1/100 dilution. A Goat Anti-Rabbit IgG H&L (HRP) (ab97051) was used as secondary at 1/500 dilution. Nucleus and cytoplasm staining on spermatogenic cell of rat testis was observed. Counter stained with Hematoxylin.Negative control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling PI 3 Kinase p85 beta with ab180967 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green).Confocal image showing nuclear and cytoplasmic staining on HeLa cell line.The nuclear counter stain is DAPI (blue).Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/1000 dilution (red).The negative controls are as follows:1. ab180967 at 1/500 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/1000 dilution.2. ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/1000 dilution.

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized Jurkat (Human T cell leukemia cells from peripheral blood) cells labeling PI 3 Kinase p85 beta with ab180967 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green).Confocal image showing nuclear and weakly cytoplasmic staining on Jurkat cell line.The nuclear counter stain is DAPI (blue).Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/1000 dilution (red).The negative controls are as follows:1. ab180967 at 1/500 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/1000 dilution.2. ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/1000 dilution.

Flow cytometric analysis of 4% paraformaldehyde-fixed HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling PI 3 Kinase p85 beta with ab180967 at 1/250 dilution (red) compared with a rabbit monoclonal IgG isotype control (ab172730, black) and a unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (FITC) at 1/500 dilution was used as the secondary antibody.

PI 3 Kinase p85 beta was immunoprecipitated from 1mg of HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysate with ab180967 at 1/80 dilution. Western blot was performed from the immunoprecipitate using ab180967 at 1/10000 dilution. Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG, was used as secondary antibody at 1/1500 dilution.Lane 1: HeLa whole cell lysate10 µg (Input).Lane 2: ab180967 IP in HeLa whole cell lysate.Lane 3: Rabbit monoclonal IgG (ab172730) instead of ab180967 in HeLa whole cell lysate.Blocking and dilution buffer and concentration: 5% NFDM/TBST.Exposure time: 10 seconds.
