ICC/IF image of ab43606 stained HeLa cells. The cells were 4% formaldeyhde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab43606, 10µg/ml) overnight at +4°C. The secondary antibody (green) was ab96899, DyLight® 488 goat anti-rabbit IgG (H+L) used at a 1/250 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.

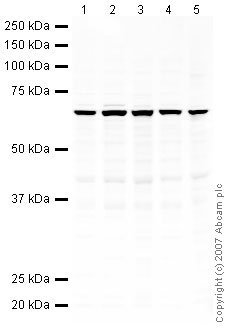

All lanes : Anti-SGK1 antibody (ab43606) at 1 µg/mlLane 1 : HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate Lane 2 : Jurkat (Human T cell lymphoblast-like cell line) Whole Cell Lysate Lane 3 : A431 (Human epithelial carcinoma cell line) Whole Cell Lysate Lane 4 : HEK293 Human embryonic kidney cell line Whole Cell Lysate Lane 5 : NIH 3T3 (Mouse embryonic fibroblast cell line) Whole Cell Lysate Lysates/proteins at 10 µg per lane.SecondaryIRDye 680 Conjugated Goat Anti-Rabbit IgG (H+L) at 1/10000 dilutionPerformed under reducing conditions.

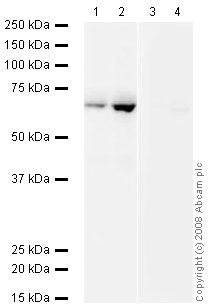

All lanes : Anti-SGK1 antibody (ab43606) at 1 µg/mlLane 1 : HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate Lane 2 : Jurkat (Human T cell lymphoblast-like cell line) Whole Cell Lysate Lane 3 : HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate with Human SGK1 peptide (ab43605) at 1 µg/mlLane 4 : Jurkat (Human T cell lymphoblast-like cell line) Whole Cell Lysate with Human SGK1 peptide (ab43605) at 1 µg/mlLysates/proteins at 10 µg per lane.SecondaryIRDye 680 Conjugated Goat Anti-Rabbit IgG (H+L) at 1/10000 dilutionPerformed under reducing conditions.
