All lanes : Anti-SNAP25 antibody (ab66066) at 1 µg/mlLane 1 : SNAP25 transfected 293T cell lysateLane 2 : Non-transfected 293T cell lysateLysates/proteins at 50 µg per lane.SecondaryGoat Anti-Mouse IgG (H&L)-HRP at 1/2500 dilution
All lanes : Anti-SNAP25 antibody (ab66066) at 1 µg/mlLane 1 : MarkerLane 2 : Zebrafish brain homogenate at 20 µgLane 3 : SH-SY5Y (Human neuroblastoma cell line) whole cell lysate at 20 µgLane 4 : Mouse brain homogenate at 20 µgSecondaryGoat polyclonal to Mouse IgG – H&L – Pre-Adsorbed (HRP) at 1/6000 dilutiondeveloped using the ECL techniquePerformed under reducing conditions.

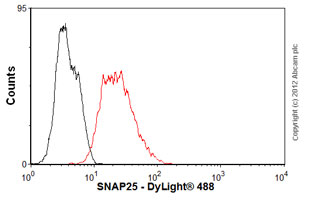

![Overlay histogram showing SH-SY5Y cells stained with ab66066 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab66066, 1µg/1x106 cells) for 30 min at 22ºC. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (ab96879) at 1/500 dilution for 30 min at 22ºC. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (ab91353, 2µg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in SH-SY5Y cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_5/2603_SNAP25-Primary-antibodies-ab66066-3.jpg)
Overlay histogram showing SH-SY5Y cells stained with ab66066 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab66066, 1µg/1x106 cells) for 30 min at 22ºC. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (ab96879) at 1/500 dilution for 30 min at 22ºC. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (ab91353, 2µg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in SH-SY5Y cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.
ab66066 stained SKNSH cells. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody ab66066 at 5µg/ml overnight at +4°C. The secondary antibody (green) was DyLight® 488 goat anti- mouse (ab96879) IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.
