Phospho-DRP1 (Ser616) Antibody

• Supplier: Cell Signaling Technology
• Catalog: 3455
• Prices: $287.00
• Sizes: 100 µl (10 western blots)
• Host: Rabbit
• Clonality: Polyclonal
• Applications: WB IP ICC/IF FC
• Species Reactivities: Human, Mouse, Rat, Monkey
• Antigen: Polyclonal antibodies are produced by immunizing animals with a synthetic phosphopeptide corresponding to residues surrounding Ser616 of human DRP1
• Description: Rabbit Polyclonal
• Gene: DNM1L

Product images

Western blot analysis of extracts from HeLa cells, untreated or treated with Calyculin A #9902, using Phospho-DRP1 (Ser616) Antibody.

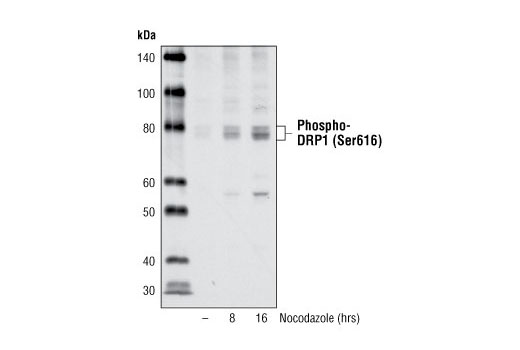

Western blot analysis of extracts from HeLa cells, untreated or nocodazole-treated for the indicated times, using Phospho-DRP1 (Ser616) Antibody.

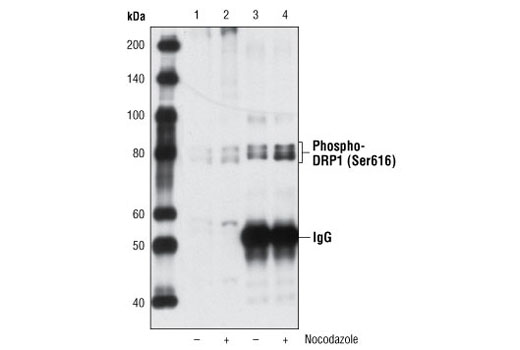

Immunoprecipitation of Phospho-DRP1 (Ser616) from HeLa cell extracts, untreated or nocodazole-treated, using Phospho-DRP1 (Ser616) Antibody followed by western blot using the same antibody. Lanes 1 & 2 are 5% input.

Confocal immunofluorescent analysis of NCI-H1299 cells, untreated (left) or λ-phosphatase-treated (right), using Phospho-DRP1 (Ser616) Antibody (green). Actin filaments have been labeled with DY-554 phallodin (red). Blue pseudocolor = DRAQ5 ® (fluorescent DNA dye).

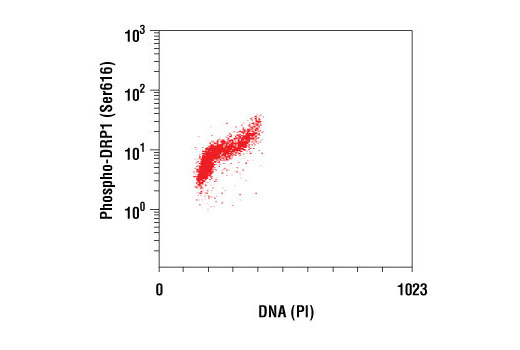

Flow cytometric analysis of Jurkat cells using Phospho-DRP1 (Ser616) Antibody versus propidium iodide (DNA content).
