LC3B (D11) XP ® Rabbit mAb

• Supplier: Cell Signaling Technology
• Catalog: 3868
• Prices: $109.00, $277.00
• Sizes: 20 µl (2 western blots), 100 µl (10 western blots)
• Host: Rabbit
• Clonality: Monoclonal
• Isotype: IgG
• Clone: D11
• Applications: WB IP IHC-P ICC/IF FC
• Species Reactivities: Human, Mouse, Rat, Monkey, Bovine, Pig
• Antigen: Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues near the amino terminus of LC3B.
• Description: Rabbit Monoclonal
• Gene: MAP1LC3B

Product images

Western blot analysis of extracts from various cell lines, untreated (-) or treated overnight with chloroquine (50 μM) (+), using LC3B (D11) XP ® Rabbit mAb (upper) or LC3B Antibody #2775 (lower).

Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence ® Control siRNA (Unconjugated) #6568 (-), SignalSilence ® LC3B siRNA I #6212 (+) or SignalSilence ® LC3B siRNA II #6213 (+), using LC3B (D11) XP ® Rabbit mAb #3868 and α-Tubulin (11H10) Rabbit mAb #2125. The LC3B (D11) XP ® Rabbit mAb confirms silencing of LC3B expression, while the α-Tubulin (11H10) Rabbit mAb is used to control for loading and specificity of LC3B siRNA.

Immunohistochemical analysis of paraffin-embedded human astrocytoma using LC3B (D11) XP ® Rabbit mAb in the presence of control peptide (left) or antigen-specific peptide (right).

Immunohistochemical analysis of paraffin-embedded HeLa cell pellets, control (left) or chloroquine-treated (right), using LC3B (D11) XP ® Rabbit mAb.

Confocal immunofluorescent analysis of HCT-116 cells, untreated (left) or choroquine-treated (50 uM, overnight; right) using LC3B (D11) XP® Rabbit mAb (green) and β-Catenin (L54E2) Mouse mAb (Alexa Fluor® 555 Conjugate) #5612 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

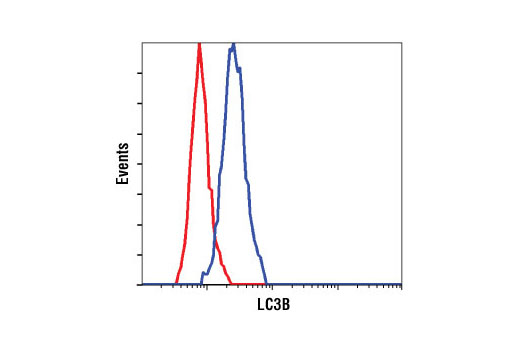

Flow cytometric analysis of HeLa cells using LC3B (D11) XP ® Rabbit mAb (blue) compared to a nonspecific negative control antibody (red).
