Western blot analysis of extracts from various cell lines using PCAF (C14G9) Rabbit mAb.

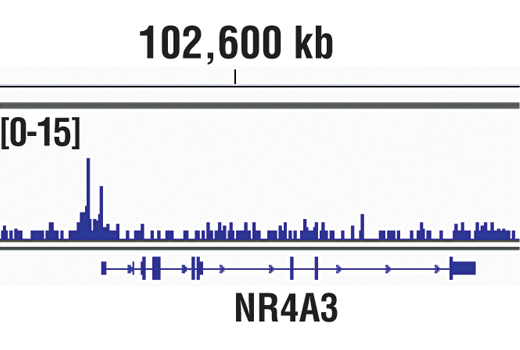

Chromatin immunoprecipitations were performed with cross-linked chromatin from 4 x 10 6 293 cells treated with Forskolin #3828 (30 µM) for 1 hour and 20 μl of PCAF (C14G9) Rabbit mAb, using SimpleChIP ® Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared from 5 ng enriched ChIP DNA using NEBNext ® Ultra™ II DNA Library Prep Kit for Illumina ® , and sequenced on the Illumina NextSeq. The figure shows binding across NR4A3, a known target gene of PCAF (see additional figure containing ChIP-qPCR data). For additional ChIP-seq tracks, please download the product data sheet.

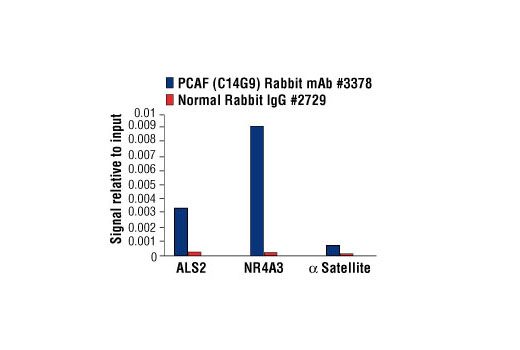

Chromatin immunoprecipitations were performed with cross-linked chromatin from 4 x 10 6 293 cells treated with Forskolin #3828 (30 µM) and either 20 μl of PCAF (C14G9) Rabbit mAb or 2 μl of Normal Rabbit IgG #2729 using SimpleChIP ® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using human ALS2 exon 1 primers, SimpleChIP ® Human NR4A3 Promoter Primers #4829, and SimpleChIP ® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
