Anti-beta Tubulin antibody [TU-06]
| Name | Anti-beta Tubulin antibody [TU-06] |
|---|---|
| Supplier | Abcam |
| Catalog | ab7792 |
| Prices | $401.00 |
| Sizes | 100 µg |
| Host | Mouse |
| Clonality | Monoclonal |
| Isotype | IgM |
| Clone | TU-06 |
| Applications | ELISA WB ICC/IF FC |
| Species Reactivities | Mouse, Human, Pig, Zebrafish, Rat, Horse, Chicken, Hamster, Bovine, Dog, Plant, Monkey, Monkey, Ape, Xenopus |
| Antigen | Beta-subunits of tubulin (purified) (Pig) |
| Description | Mouse Monoclonal |
| Gene | TUBB |
| Conjugate | Unconjugated |
| Supplier Page | Shop |
Product images
![Anti-beta Tubulin antibody [TU-06] (ab7792) at 1/500 dilution + Human U87 MG whole cell lysate with 5% Milk for 1 hour at 22°C.SecondaryHRP-conjugated Sheep anti-mouse IgG monoclonal at 1/5000 dilutionThis image is courtesy of an anonymous AbreviewSee Abreview](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_1/14298_beta-Tubulin-Primary-antibodies-ab7792-2.jpg)
Anti-beta Tubulin antibody [TU-06] (ab7792) at 1/500 dilution + Human U87 MG whole cell lysate with 5% Milk for 1 hour at 22°C.SecondaryHRP-conjugated Sheep anti-mouse IgG monoclonal at 1/5000 dilutionThis image is courtesy of an anonymous AbreviewSee Abreview

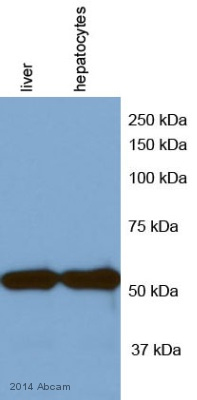

![All lanes : Anti-beta Tubulin antibody [TU-06] (ab7792) at 1/2000 dilutionLane 1 : Mouse liver tissue lysateLane 2 : Mouse hepatocyte cell lysateLysates/proteins at 20 µg per lane.SecondaryHRP-conjugated goat anti-mouse IgG polyclonal at 1/20000 dilutiondeveloped using the ECL techniquePerformed under reducing conditions.Observed band size : 52 kDa (why is the actual band size different from the predicted?)Exposure time : 10 secondsThis image is courtesy of an anonymous AbreviewSee Abreview](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_1/14299_ab7792-237755-7792wb.jpg)
All lanes : Anti-beta Tubulin antibody [TU-06] (ab7792) at 1/2000 dilutionLane 1 : Mouse liver tissue lysateLane 2 : Mouse hepatocyte cell lysateLysates/proteins at 20 µg per lane.SecondaryHRP-conjugated goat anti-mouse IgG polyclonal at 1/20000 dilutiondeveloped using the ECL techniquePerformed under reducing conditions.Observed band size : 52 kDa (why is the actual band size different from the predicted?)Exposure time : 10 secondsThis image is courtesy of an anonymous AbreviewSee Abreview
ICC/IF image of ab7792 stained HeLa cells. The cells were 4% PFA fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab7792, 1 μg/ml) overnight at +4°C. The secondary antibody (green) was Alexa Fluor© 488 goat anti-mouse IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor© 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43 μM.

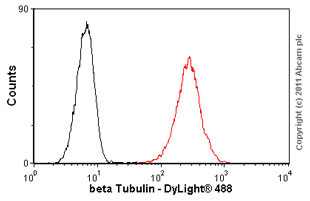

![Overlay histogram showing HeLa cells stained with ab7792 (red line). The cells were fixed with methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100® for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab7792, 1µg/1x10^6 cells) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgM [ICIGM] (ab91545, 2µg/1x10^6 cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in HeLa cells fixed with 4% paraformaldehyde (10 min)/permeabilized with 0.1% PBS-Triton X-100® used under the same conditions.](http://www.bioprodhub.com/system/product_images/ab_products/2/sub_1/14301_ab7792-194549-ab77922.jpg)
Overlay histogram showing HeLa cells stained with ab7792 (red line). The cells were fixed with methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100® for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab7792, 1µg/1x10^6 cells) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgM [ICIGM] (ab91545, 2µg/1x10^6 cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in HeLa cells fixed with 4% paraformaldehyde (10 min)/permeabilized with 0.1% PBS-Triton X-100® used under the same conditions.
Product References
Nonautonomous contact guidance signaling during collective cell migration. - Nonautonomous contact guidance signaling during collective cell migration.
Londono C, Loureiro MJ, Slater B, Lucker PB, Soleas J, Sathananthan S, Aitchison JS, Kabla AJ, McGuigan AP. Proc Natl Acad Sci U S A. 2014 Feb 4;111(5):1807-12. doi:
The amino terminus extension in the long dipeptidyl peptidase 9 isoform contains - The amino terminus extension in the long dipeptidyl peptidase 9 isoform contains
Justa-Schuch D, Moller U, Geiss-Friedlander R. Cell Mol Life Sci. 2014 Sep;71(18):3611-26.
Tsc1 (hamartin) confers neuroprotection against ischemia by inducing autophagy. - Tsc1 (hamartin) confers neuroprotection against ischemia by inducing autophagy.
Papadakis M, Hadley G, Xilouri M, Hoyte LC, Nagel S, McMenamin MM, Tsaknakis G, Watt SM, Drakesmith CW, Chen R, Wood MJ, Zhao Z, Kessler B, Vekrellis K, Buchan AM. Nat Med. 2013 Mar;19(3):351-7.
A murine Zic3 transcript with a premature termination codon evades - A murine Zic3 transcript with a premature termination codon evades
Ahmed JN, Ali RG, Warr N, Wilson HM, Bellchambers HM, Barratt KS, Thompson AJ, Arkell RM. Dis Model Mech. 2013 May;6(3):755-67.
Human ELG1 regulates the level of ubiquitinated proliferating cell nuclear - Human ELG1 regulates the level of ubiquitinated proliferating cell nuclear
Lee KY, Yang K, Cohn MA, Sikdar N, D'Andrea AD, Myung K. J Biol Chem. 2010 Apr 2;285(14):10362-9.
Nephrocystin specifically localizes to the transition zone of renal and - Nephrocystin specifically localizes to the transition zone of renal and
Fliegauf M, Horvath J, von Schnakenburg C, Olbrich H, Muller D, Thumfart J, Schermer B, Pazour GJ, Neumann HP, Zentgraf H, Benzing T, Omran H. J Am Soc Nephrol. 2006 Sep;17(9):2424-33. Epub 2006 Aug 2.
Engineered early embryonic cardiac tissue retains proliferative and contractile - Engineered early embryonic cardiac tissue retains proliferative and contractile
Tobita K, Liu LJ, Janczewski AM, Tinney JP, Nonemaker JM, Augustine S, Stolz DB, Shroff SG, Keller BB. Am J Physiol Heart Circ Physiol. 2006 Oct;291(4):H1829-37. Epub 2006 Apr 14.
Dent Disease with mutations in OCRL1. - Dent Disease with mutations in OCRL1.
Hoopes RR Jr, Shrimpton AE, Knohl SJ, Hueber P, Hoppe B, Matyus J, Simckes A, Tasic V, Toenshoff B, Suchy SF, Nussbaum RL, Scheinman SJ. Am J Hum Genet. 2005 Feb;76(2):260-7. Epub 2004 Dec 30.
Distinct localization of a beta-tubulin epitope in the Tetrahymena thermophila - Distinct localization of a beta-tubulin epitope in the Tetrahymena thermophila
Libusova L, Sulimenko T, Sulimenko V, Janisch R, Hozak P, Draber P. Protoplasma. 2005 Oct;225(3-4):157-67. Epub 2005 Oct 5.
Par6alpha signaling controls glial-guided neuronal migration. - Par6alpha signaling controls glial-guided neuronal migration.
Solecki DJ, Model L, Gaetz J, Kapoor TM, Hatten ME. Nat Neurosci. 2004 Nov;7(11):1195-203. Epub 2004 Oct 10.
