Anti-Coilin antibody [IH10]

• Supplier: Abcam
• Catalog: ab87913
• Prices: $392.00
• Sizes: 100 µg
• Host: Mouse
• Clonality: Monoclonal
• Isotype: IgG2b
• Clone: IH10
• Applications: IP IHC-P FC WB ICC/IF ICC/IF
• Species Reactivities: Human
• Antigen: Synthetic peptide of Human Coilin
• Description: Mouse Monoclonal
• Gene: COIL
• Conjugate: Unconjugated

Product images

IHC image of Coilin staining in human testis formalin fixed paraffin embedded tissue section*. The section was pre-treated using pressure cooker heat mediated antigen retrieval with sodium citrate buffer (pH6) for 30mins. The section was incubated with ab87913, 3µg/ml overnight at +4°C. An HRP-conjugated secondary (ab97250, 1/500 dilution) was used for 1hr at room temperature. The section was counterstained with haematoxylin and mounted with DPX.*Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

ab87913(1/2000) staining Coilin in assynchronous HeLa cells (green). Cells were fixed in methanol (this image) or paraformaldehyde (see abreview image), permeabilized with 0.5% Triton X100 and counterstained with DAPI in order to highlight the nucleus (red). for further experimental details please refer to Abreview.See Abreview

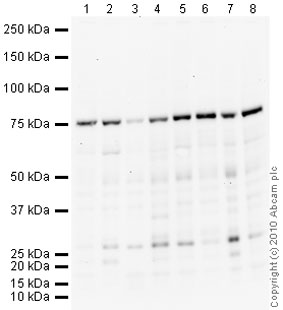

All lanes : Anti-Coilin antibody [IH10] (ab87913) at 5 µg/mlLane 1 : HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate Lane 2 : HeLa (Human epithelial carcinoma cell line) Nuclear Lysate Lane 3 : Jurkat (Human T cell lymphoblast-like cell line) Whole Cell Lysate Lane 4 : HepG2 (Human hepatocellular liver carcinoma cell line) Whole Cell Lysate Lane 5 : HEK293 (Human embryonic kidney cell line) Whole Cell Lysate Lane 6 : MCF7 (Human breast adenocarcinoma cell line) Whole Cell Lysate Lane 7 : Caco 2 (Human colonic carcinoma cell line) Whole Cell Lysate Lane 8 : SHSY-5Y (Human neuroblastoma cell line) Whole Cell Lysate Lysates/proteins at 10 µg per lane.SecondaryGoat Anti-Mouse IgG H&L (HRP) preadsorbed (ab97040) at 1/5000 dilutiondeveloped using the ECL techniquePerformed under reducing conditions.

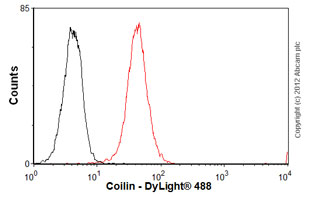

Overlay histogram showing HeLa cells stained with ab87913 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab87913, 1µg/1x106 cells) for 30 min at 22ºC. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (ab96879) at 1/500 dilution for 30 min at 22ºC. Isotype control antibody (black line) was mouse IgG2b [PLPV219] (ab91366, 2µg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed.

IHC image of Coilin staining in Human normal testis formalin fixed paraffin embedded tissue section, performed on a Leica BondTM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab87913, 5µg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

Coilin was immunoprecipitated using 0.5mg HepG2 whole cell extract, 5µg of Mouse monoclonal to Coilin and 50µl of protein G magnetic beads (+). No antibody was added to the control (-). The antibody was incubated under agitation with Protein G beads for 10min, HepG2 whole cell extract lysate diluted in RIPA buffer was added to each sample and incubated for a further 10min under agitation.Proteins were eluted by addition of 40µl SDS loading buffer and incubated for 10min at 70oC; 10µl of each sample was separated on a SDS PAGE gel, transferred to a nitrocellulose membrane, blocked with 5% BSA and probed with ab87913.Secondary: Goat polyclonal to mouse IgG light chain specific (HRP) at 1/5000 dilution.Band: 75kDa: Coilin

ICC/IF image of ab87913 stained HeLa cells. The cells were 4% PFA fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab87913, 10µg/ml) overnight at +4°C. The secondary antibody (green) was Alexa Fluor® 488 goat anti-mouse IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.

Product References

Involvement of telomerase reverse transcriptase in heterochromatin maintenance. - Involvement of telomerase reverse transcriptase in heterochromatin maintenance.

Maida Y, Yasukawa M, Okamoto N, Ohka S, Kinoshita K, Totoki Y, Ito TK, Minamino T, Nakamura H, Yamaguchi S, Shibata T, Masutomi K. Mol Cell Biol. 2014 May;34(9):1576-93.

The long non-coding RNA nuclear-enriched abundant transcript 1_2 induces - The long non-coding RNA nuclear-enriched abundant transcript 1_2 induces

Nishimoto Y, Nakagawa S, Hirose T, Okano HJ, Takao M, Shibata S, Suyama S, Kuwako K, Imai T, Murayama S, Suzuki N, Okano H. Mol Brain. 2013 Jul 8;6:31.

TOX4 and NOVA1 proteins are partners of the LEDGF PWWP domain and affect HIV-1 - TOX4 and NOVA1 proteins are partners of the LEDGF PWWP domain and affect HIV-1

Morchikh M, Naughtin M, Di Nunzio F, Xavier J, Charneau P, Jacob Y, Lavigne M. PLoS One. 2013 Nov 27;8(11):e81217.
