Overlay histogram showing HeLa cells stained with ab150372 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab150372, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor® 488 goat anti-rabbit IgG (H&L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x106 cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in HeLa cells fixed with 4% paraformaldehyde (10 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

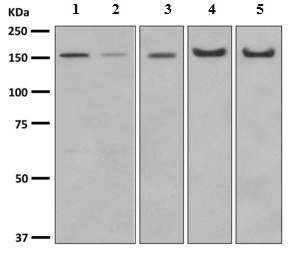

All lanes : Anti-Desmoglein 2 antibody [EPR6768] (ab150372) at 1/10000 dilutionLane 1 : HepG2 cell lysateLane 2 : HeLa cell lysate Lane 3 : Human fetal heart lysateLane 4 : mouse heart lysateLane 5 : rat heart lysate Lysates/proteins at 10 µg per lane.SecondaryHRP labelled goat anti-rabbit at 1/2000 dilution
Immunohistochemical analysis of paraffin embedded Human thyroid gland papillary carcinoma tissue labeling Desmoglein 2 with ab150372 at a 1/250 dilution.
Immunofluorescent staining of HepG2 cells labeling Desmoglein 2 with ab150372 at a 1/250 dilution.
